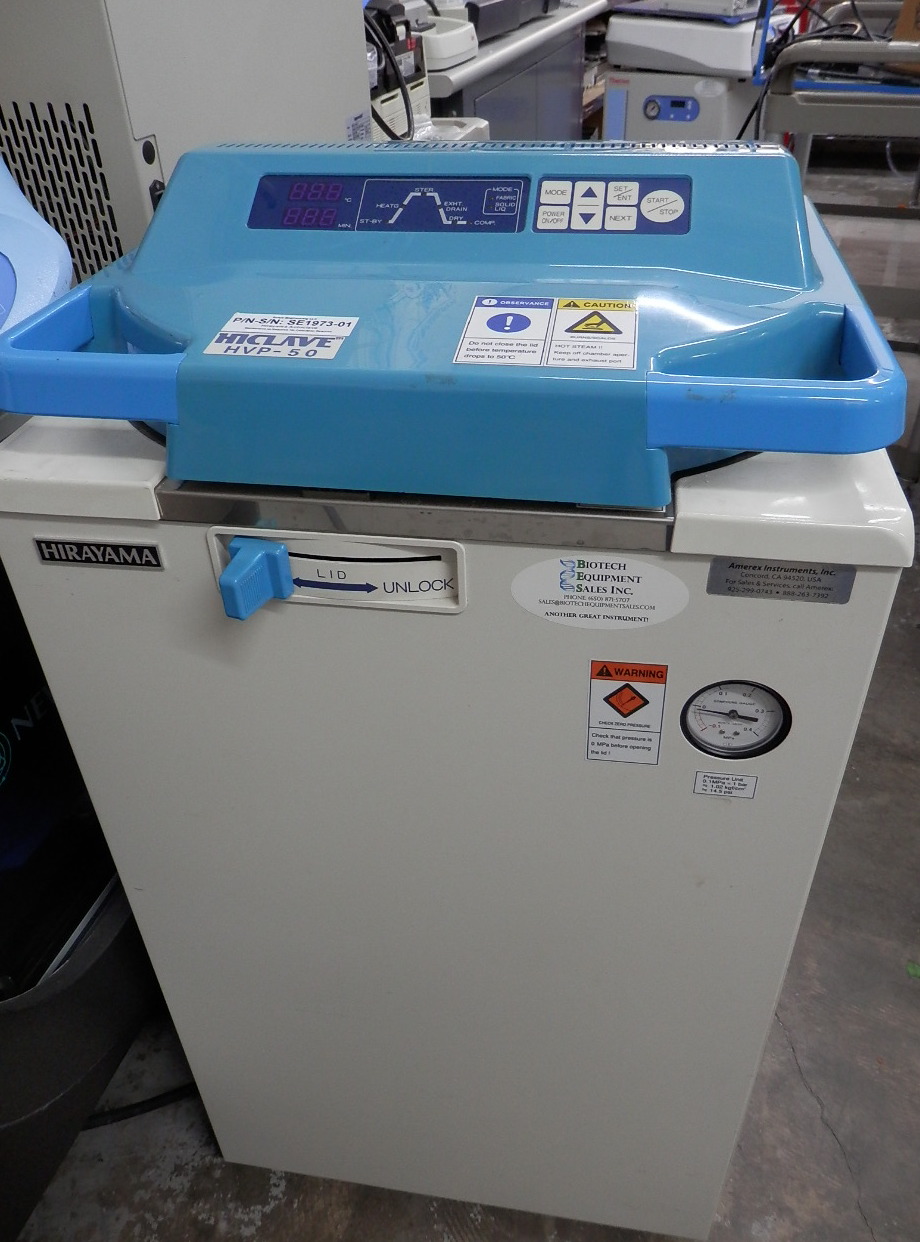

Hirayama HVP-50 Upright Autoclave

Model: HVP-50

Space-saving design with lid opening upward.
Fully automatic drying cycle for solid loads uses heat and vacuum for faster and more efficient drying.
Lid safety interlock prevents lid opening when a cycle is in progress, the chamber is pressurized, or when the temperature exceeds 97C.
Pre-vacuum cycle- vacuum pump removes air from the chamber when sterilizing solids such as glassware and pipette tips, thereby eliminating cold spots, and ensuring faster and more efficient sterilization.
One-touch lever to easily open and close chamber lid.
Liquid cycle for media and agar.
Process display shows the program progress selected and status of the sterilization cycle.
Cycle for wastes and glassware without drying.
Bacteria filter reduces re-contamination.
Door-closure sensor prevents a cycle from starting unless the door is closed properly.

HVP-50 size: 50 liters, 11.8" D, 28.0" H.

Specifications:

Temperature
Operating Range: 105¼C to 135¼C
Display Range: 5¼C to 140¼C

Gauge Pressure
Operating Range (gauge): 3 to 28.4 psi (0.2 to 2.0 kg/cm )

Timer
Sterilization: 1 to 250 minutes
Drying: 1 to 90 minutes

Dimensions
Overall (W x D x H): 20.1" x 24.8" x 40.9" (51 x 63 x 104) cm

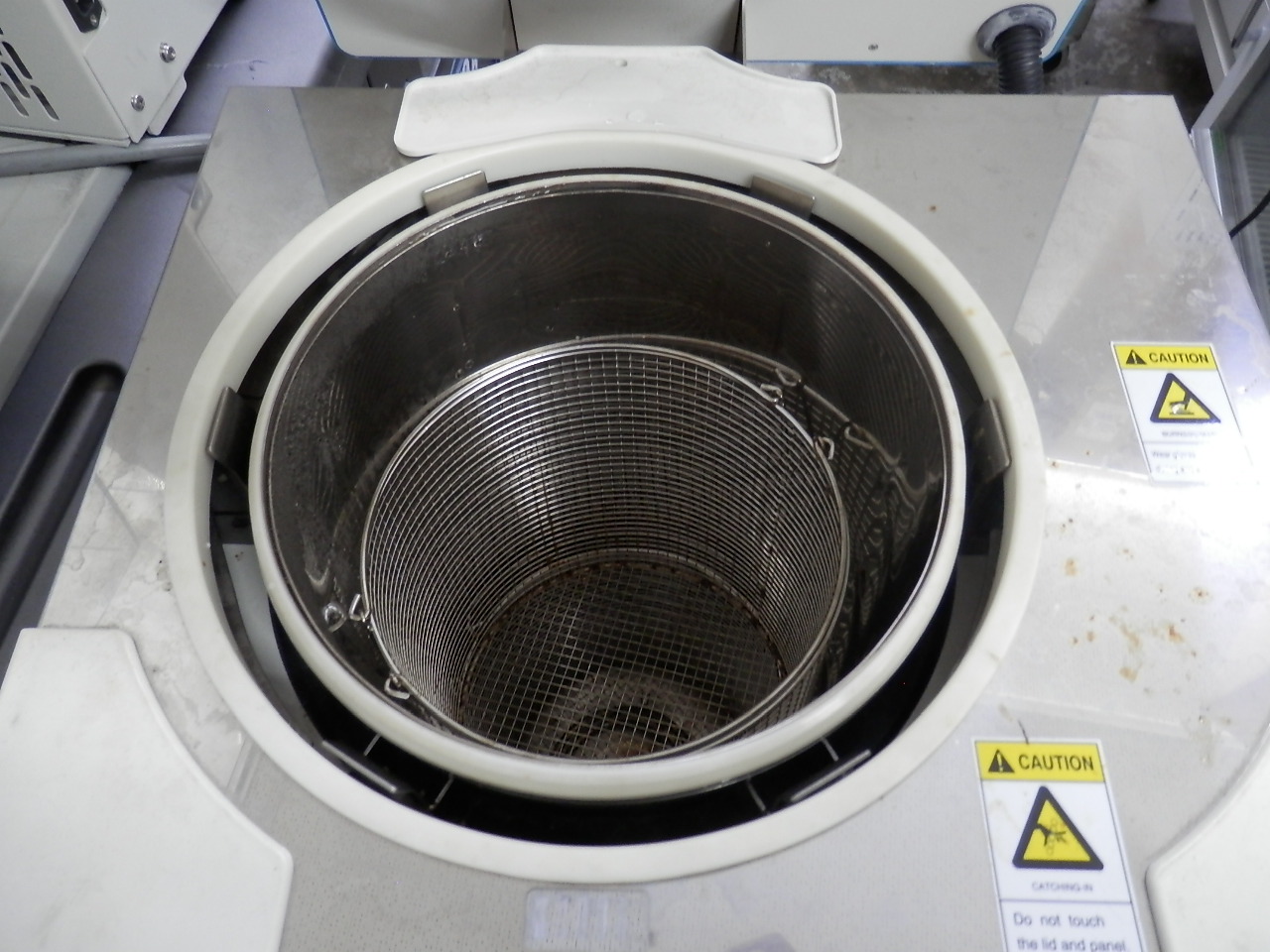

Chamber (Diameter x Height): 50 liter/ 11.8" x 28" (30 cm x 71 cm)

Safety Devices
Temperature- and pressure-sensitive lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, lid-closure detector, over-current detector and circuit breaker with ground fault circuit interrupter.

Power
Source: 120V, 50/60 Hz, single phase (220V/240V available on request)
Consumption:
2000 watts (2000 VA)
