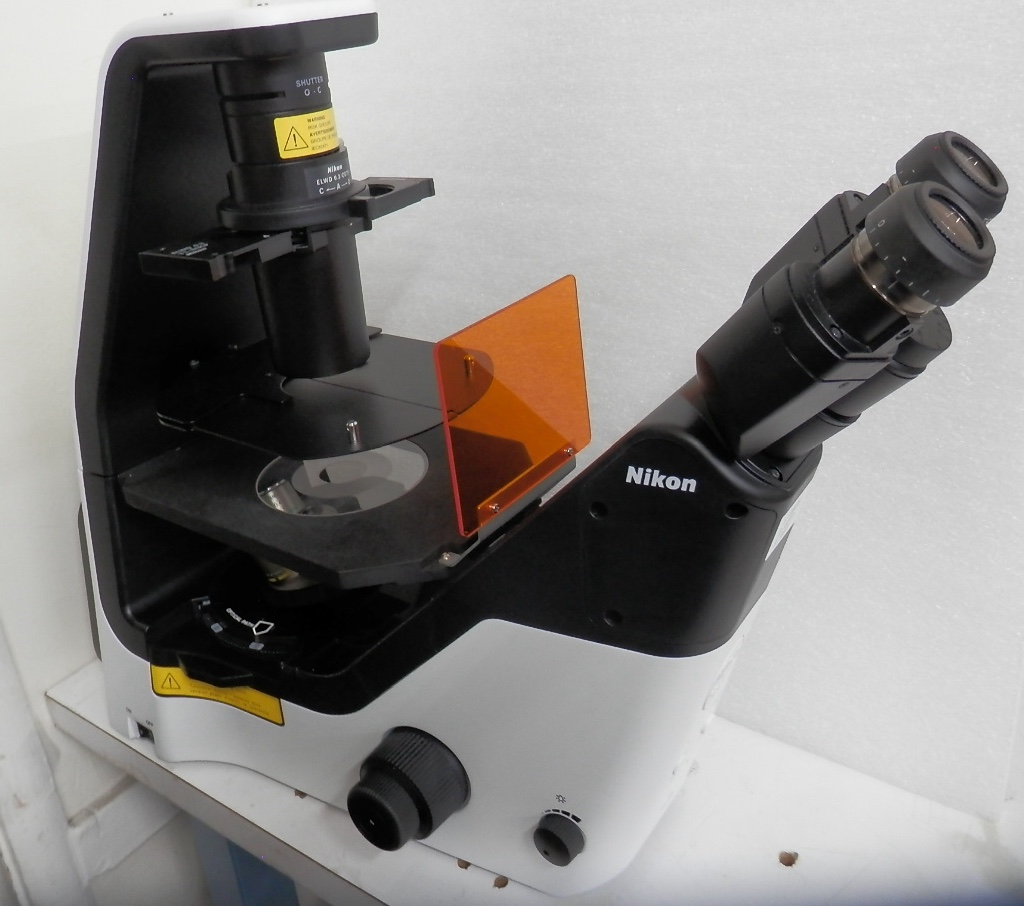

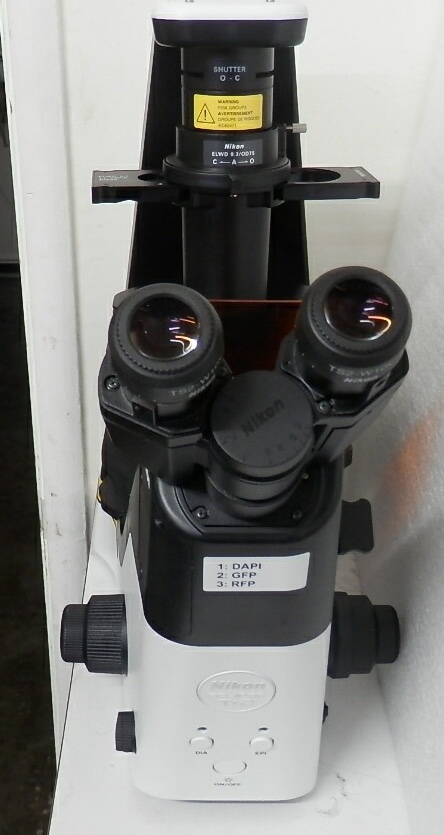

Nikon Eclipse Ts2-FL Inverted Fluorescence Microscope

Utilizing the CFI60 optical system and LED illumination for both Diascopic and Epi-fluorescence imaging, the ECLIPSE Ts2 microscope offers brilliantly clear images, enabling more efficient cell culture observation and documentation. Its contrast observation method and improved operability enhance its use for routine laboratory work. Control buttons on the Ts2 microscope are intuitively located for a streamlined workflow. Commonly used controls such as the on/off and Diascopic/Epi-fluorescence switching buttons are located at the front panel for easy reach. Buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively, to eliminate confusion and improve workflow efficiency.

Eyepieces (F.O.V.): 10x (22), 15x (16), 20x (12.5).

Includes:

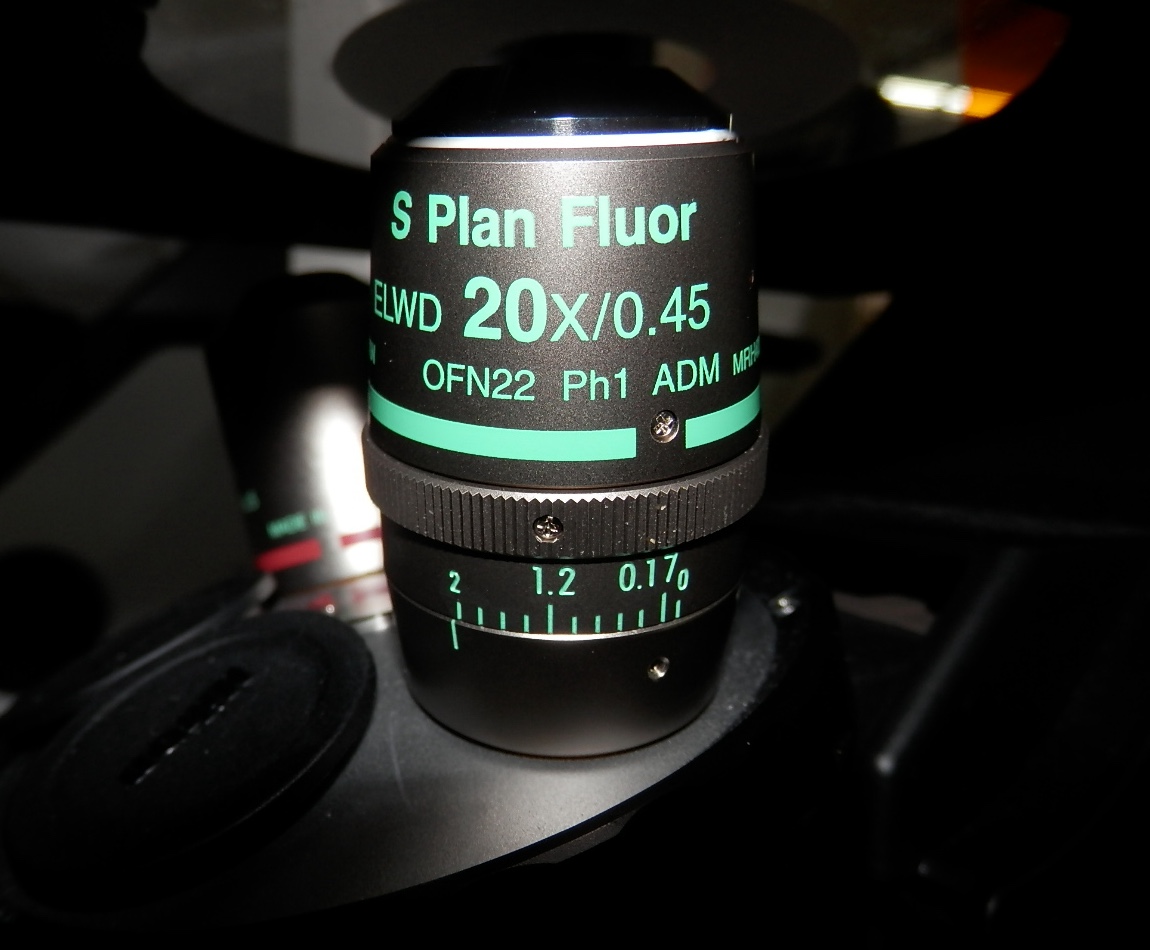

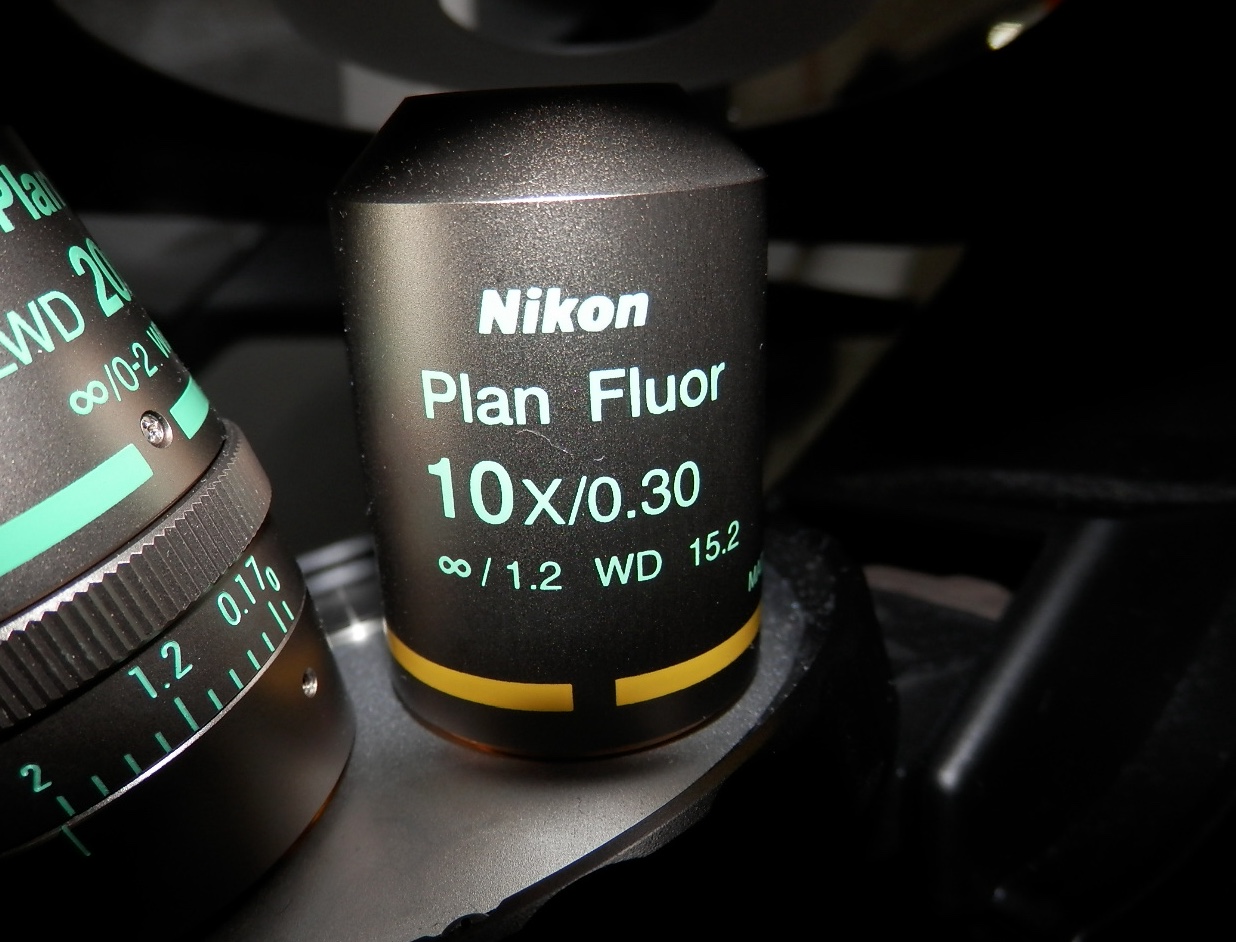

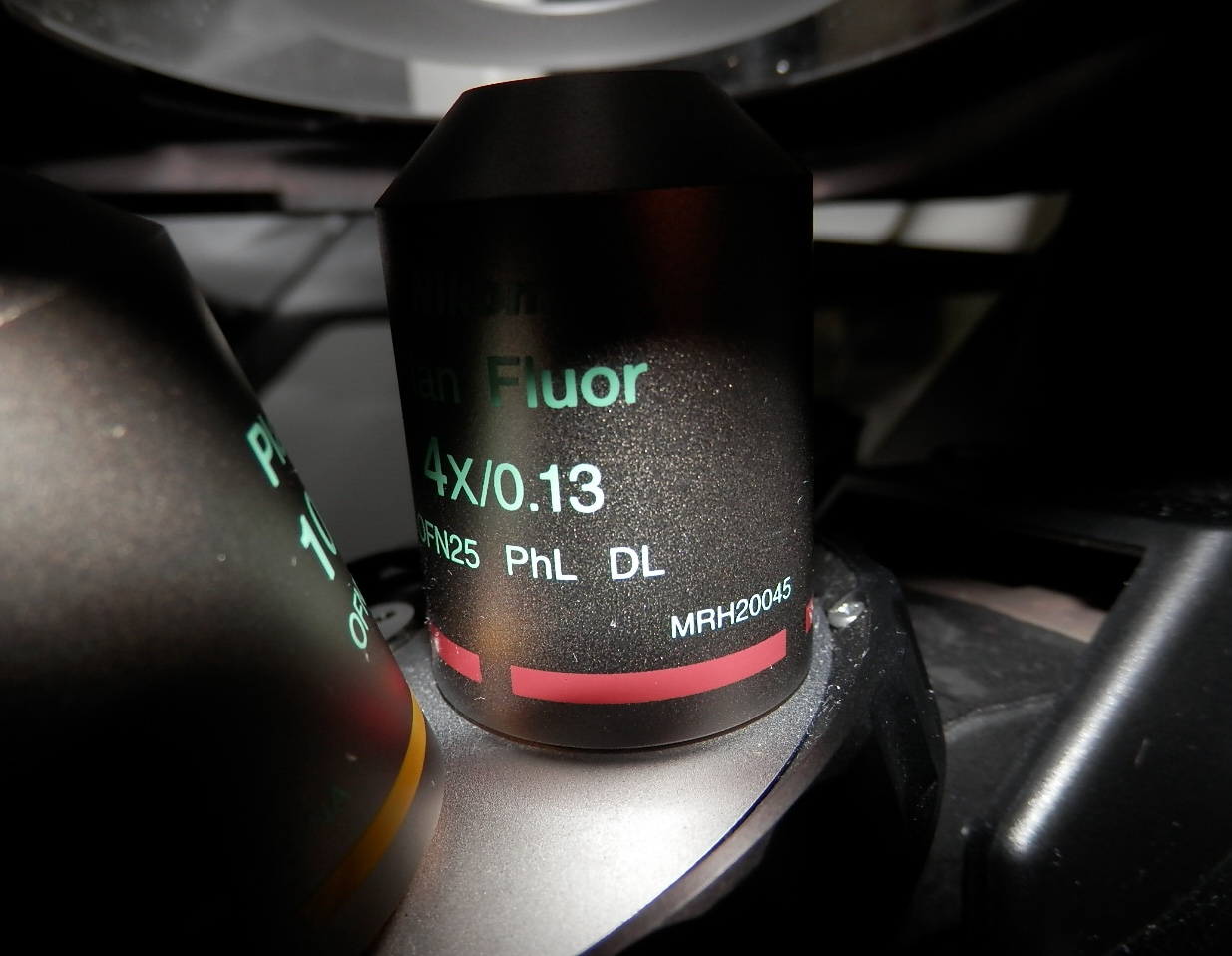

3 Objectives: Plan Fluor, 4x/0.13, PhL; Plan Fluor 10x/0.30, ∞/1.2, WD 15.2, S;  Plan Fluor, ELWD 20x/0.45, OFN22, Ph 1 ADM

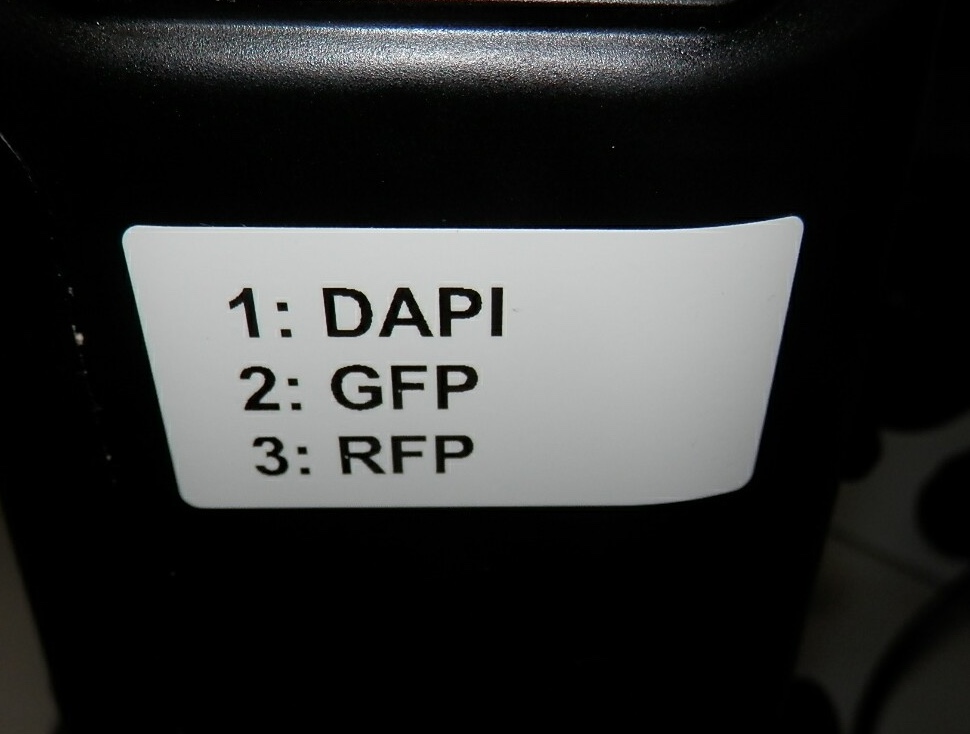

3 Fluorescence cubes: AT-DAPI (part # 96221); AT-TRIT/CY3 (part # 96229); and 470 LED (part # 96242)

Specifications
Catalog No: NIKONUKSET05

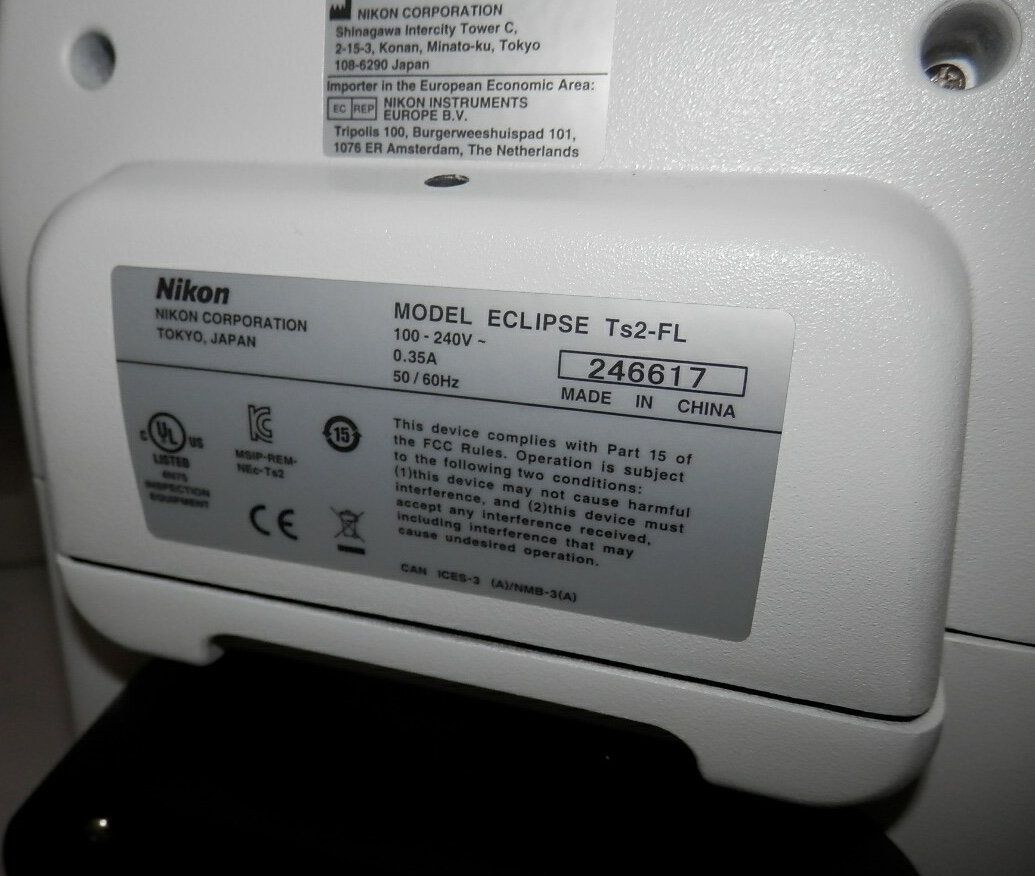

Model: Eclipse Ts2-FL
Observation method: Brightfield, apodized phase contrast, phase contrast, emboss contrast, epi-fluorescence
Nosepiece: Quintuple
Condenser: ELWD (NA 0.3、W.D. 75 mm)
Illumination: Diascopic and Epi-fluorescence (LED illuminator, built-in Fly eye lens; Can be configured with up to 3 different fluorescence LED units; available wavelengths: 385, 455, 470, 505, 525, 590, 625 nm)
W×D×H: 236×564×471 mm
Weight: 14.5 kg

Comes with our 90-day warranty.
